Kyosho KYO-32741 - Kyosho Mini-Z MR-03VE Chassis and Transmitter Set (2.4GHz ASF) - Chassis Sets

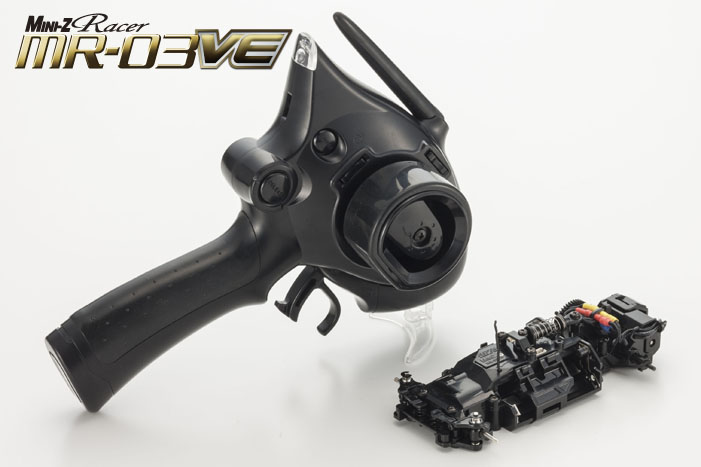

Kyosho Mini-Z MR-03VE Chassis and Transmitter Set (2.4GHz ASF).

The Mini-Z’s fascination has always been in the body!
Choose from the huge line up of RM (rear) mount body styles available for this MR-03VE chassis with transmitter!

Front suspension moves camber in concert with stroke. Low center of gravity design incorporated throughout. Powerful drive train combined with high performance servos and ESC. The Perfex KT-18 transmitter unites with the Mini-Z Racer MR-03VE chassis featuring the most advanced specifications developed in its history. Any RM mount body from the Auto Scale Collection can be fitted. With the flexibility of the MR-03 chassis/RC system set, both narrow and wide body styles can be fitted (optional parts may be required). This package suits those wishing to buy a MINI-Z but wanting a different body style to what is included in a Readyset or wishing to combine an existing body with a new chassis. With the KT-18 transmitter included, up to 40 cars can be run at the same time. With the combination of Mini-Z performance and your choice of body style, you can get a true taste of the excitement of motor racing.

Chassis Features

Compatible with Mini-Z Racer RM mount bodies. **Different motor case and diff gear assembly maybe required in some cases.
Newly developed unique front suspension (VCS) changes camber in accordance with suspension stroke.
Equipped with newly developed digital servo using coreless motor.
Compatible with huge range of body styles with suitable motor case and wheels & tires included with Auto Scale Collection sets.
ASF2.4GHz System requires no frequency band selection. A single transmitter can be used to control multiple models.
Coil spring on the front suspension can be easily replaced by removing the spring stopper with just two screws.

Kit Contents

Semi-assembled chassis (RM Mount)
ASF2.4GHz Perfex KT-18 transmitter for MINI-Z
Wide tread (front) lower & upper plates and steering tie rods (pre-installed)
Narrow tread (front) lower & upper plates and steering tie rods (included)
Front suspension spacers for setting adjustment
Pinion gears: 6T, 7T, 8T, 9T
Wheel wrench
Pinion gear tool
Pairing stick
Spare wheel nuts

Required For Operation

Auto Scale Collection (Body Set)
AAA-size alkaline or Ni-MH batteries x 4 for chassis
AAA-size alkaline batteries x 4 for transmitter

Chassis Technical Data
Length: 124-133mm (MM Chassis:125-133mm,RM Chassis:124-132mm)
Width: 65-76mm
Height: 34-35mm
Wheelbase: 86-106mm(86, 90, 94, 98, 102, 106）
Tread (F/R): (Wide)61.5mm / 59mm　(Narrow)56.5mm / 56.5mm [when wheel offset is 0]　
Tire(F/R): 23.5-25 x 8.5mm　/　25-27 x 8.5-11mm
Gear Ratio: 7.3, 6.3, 5.5, 4.9：1
Weight: 135g approx.
Motor: Xspeed VE ECO Tune Brushless Motor
